Specifications
  • 28'
  • 30'
  • 32'
Length
28'
30'
32'
Bottom Width
96"
96"
96"
Dry Weight (lbs)
7200
7500
7800
Beam
120"
120"
120"
Side Height
48"
48"
48"
Transom Height
25"
25"
25"
Transom Degrees
18°
18°
18°
Total Bow Degrees
64°
64°
64°
Fuel Capacity (Gal)
150
150
150
Max Horsepower
600
600
600
Person/Capacity
12
12
12
Aluminum Thickness
Sides:
0.160"
0.160"
0.160"
Transom:
0.250"
0.250"
0.250"
Bottom:
0.250"
0.250"
0.250"
Cabin Length
132"
132"
132"
Cabin Width
84"
84"
84"
Cabin Height
78"
78"
78"
Aft Deck
74"
98"
122"
Standard Features
Anodes: Sacrificial Anodes
x
x
x
Battery Storage: Up to 4 Batteries, in Transom
x
x
x
Bilge Pumps: Two (one w/auto switch, one manual-switch 2000 gph)
x
x
x
Bottom: 96" w/ Full Reverse Chine
x
x
x
Bow Eyes: Double, Welded
x
x
x
Bow Rails: Welded Bow Rails
x
x
x
Cleats: 8", Six on Gunwales, Two on Bow Deck
x
x
x
Cockpit Deck: Heavy Duty, Non-Skid self Bailing Deck
x
x
x

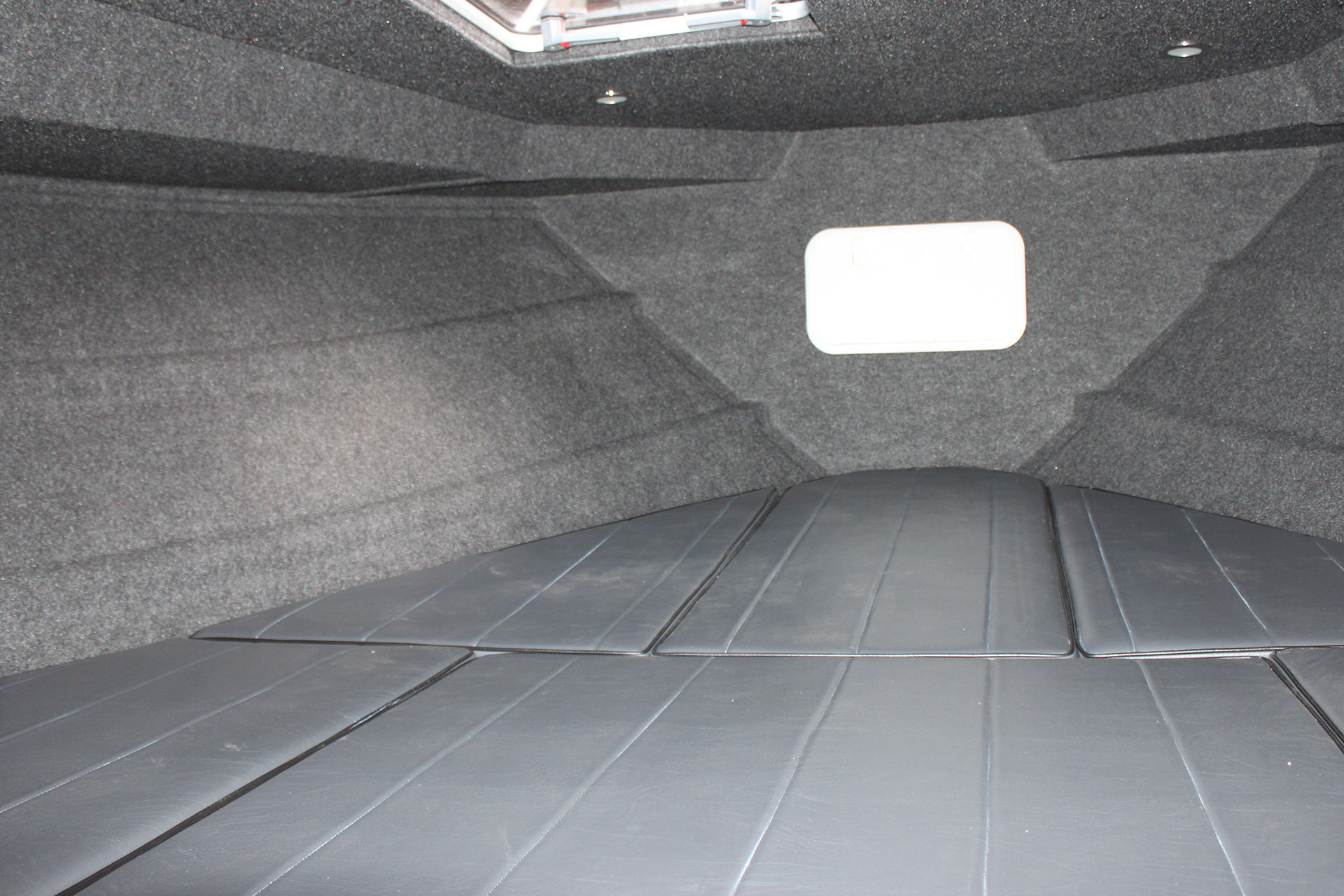

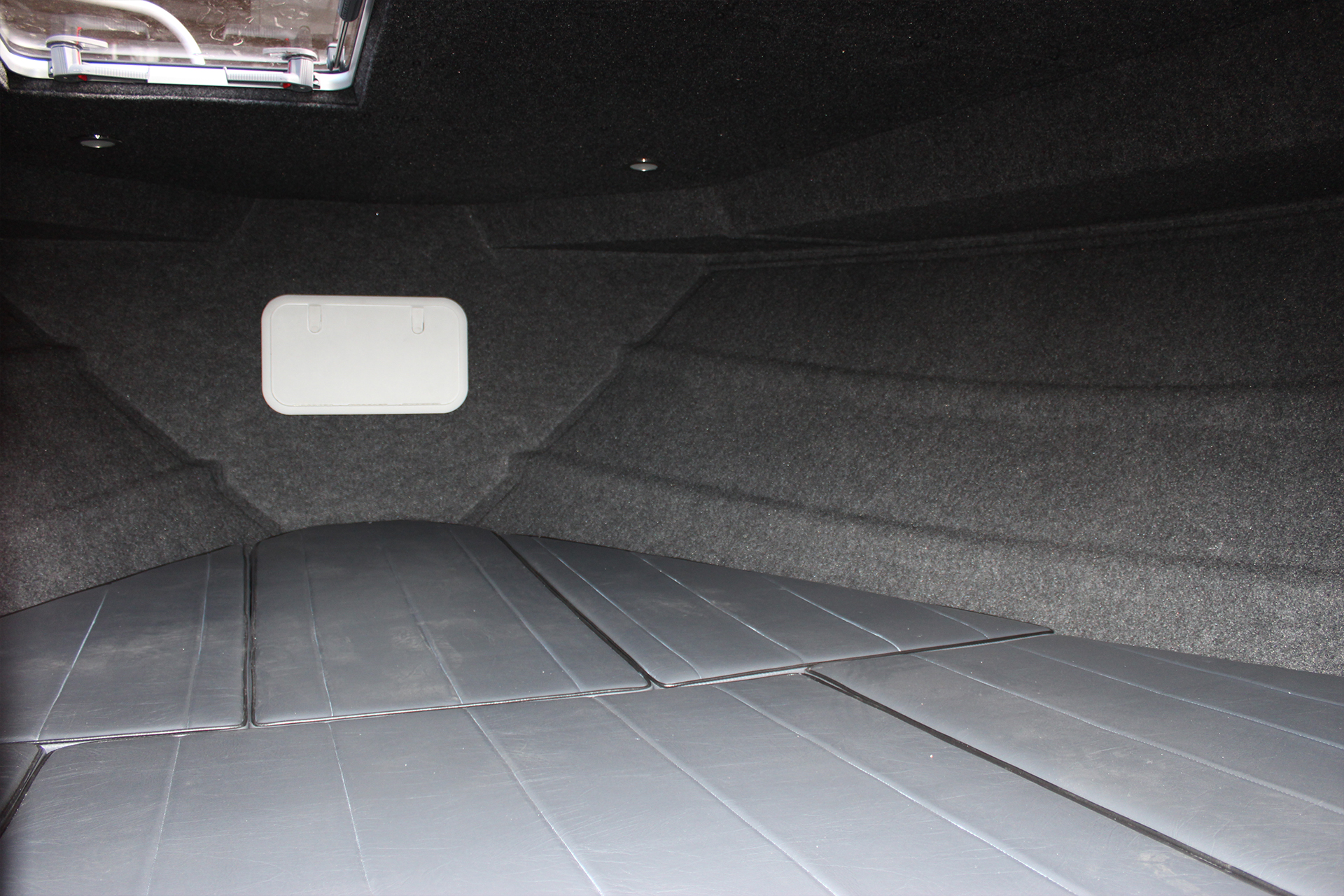

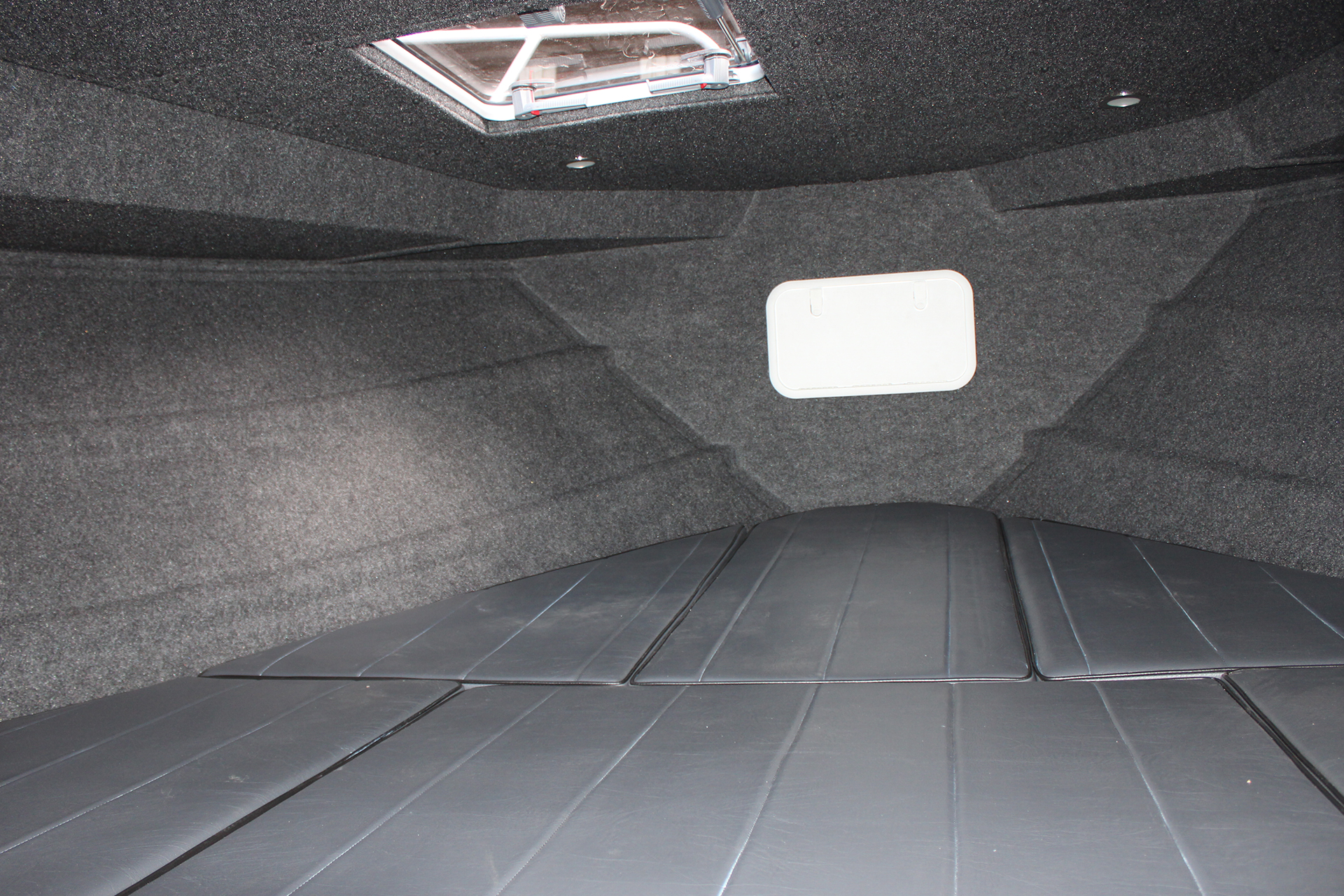

Cuddy: V Berth Carpet. Inside Bow (lined with 1/2" foam and carpet for comfort and sound)
x
x
x
Cuddy: V Berth w/ Locking Bi-fold Privacy Wood Grain Door
x
x
x
Cuddy: V Berth Screened Sliding Windows (port and starboard)
x
x
x
Cuddy: V Berth Storage
x
x
x
Cuddy: V Berth Storage Bow-access Hatch (evacuation hatch)
x
x
x
Cup Holders: Two Stainless Steel LED Cup Holders On Dash.
x
x
x
Decals: Vinyl side striping w/ Graphics
x
x
x
Door: Framed bulkhead door, locking.
x
x
x
Fish Box: In transom, welded aluminum.
x
x
x
Fish Box: In floor with macerator pump and lifting ram.
x
x
x
Fuel Tank: 150 gal
x
x
x

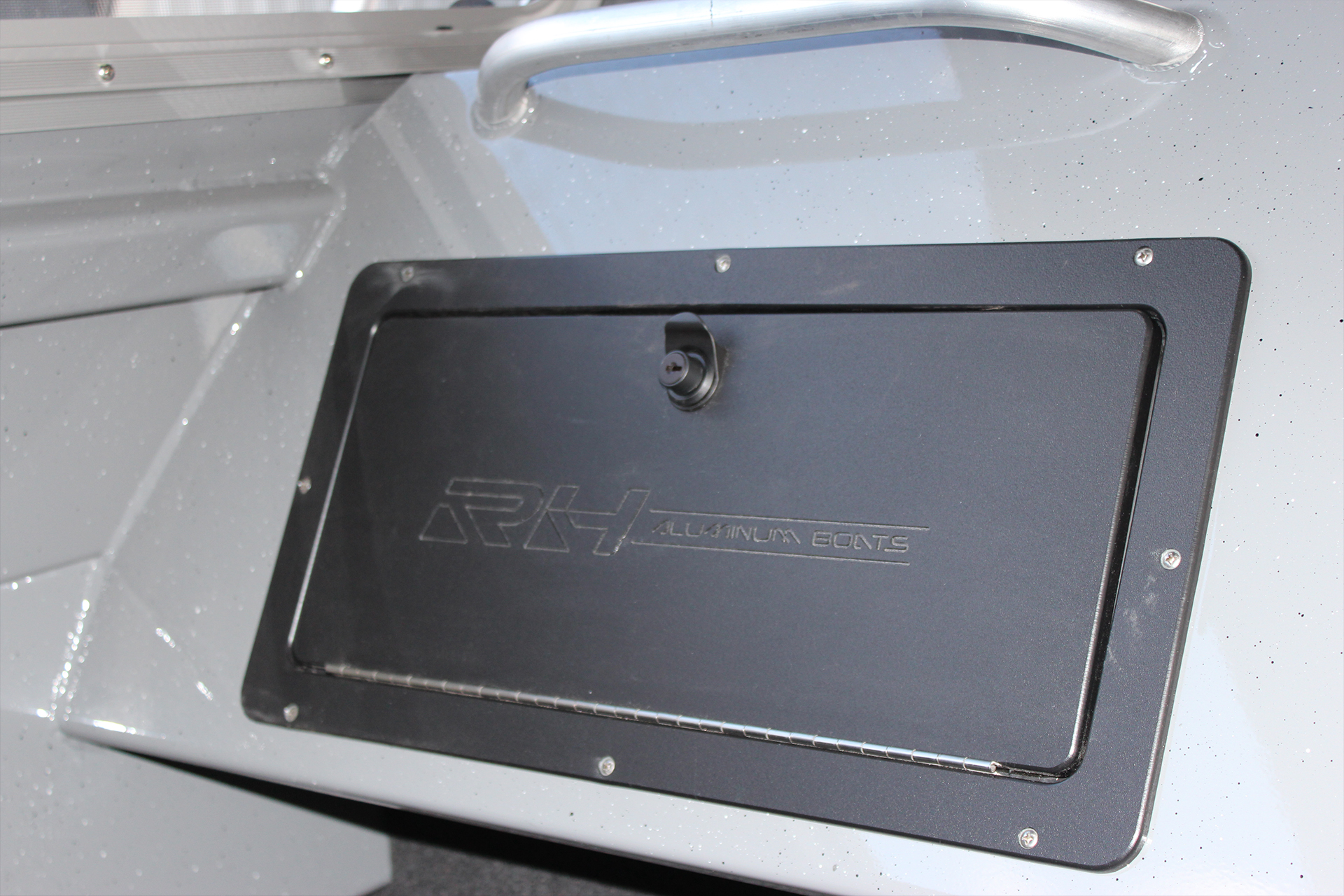

Glove Box: Lockable
x
x
x
Grab Handles: Door and Glove Box
x
x
x
Handrails: Vertical (aft cabin sides)
x
x
x
Horn: Deluxe Trumpet Horn
x
x
x

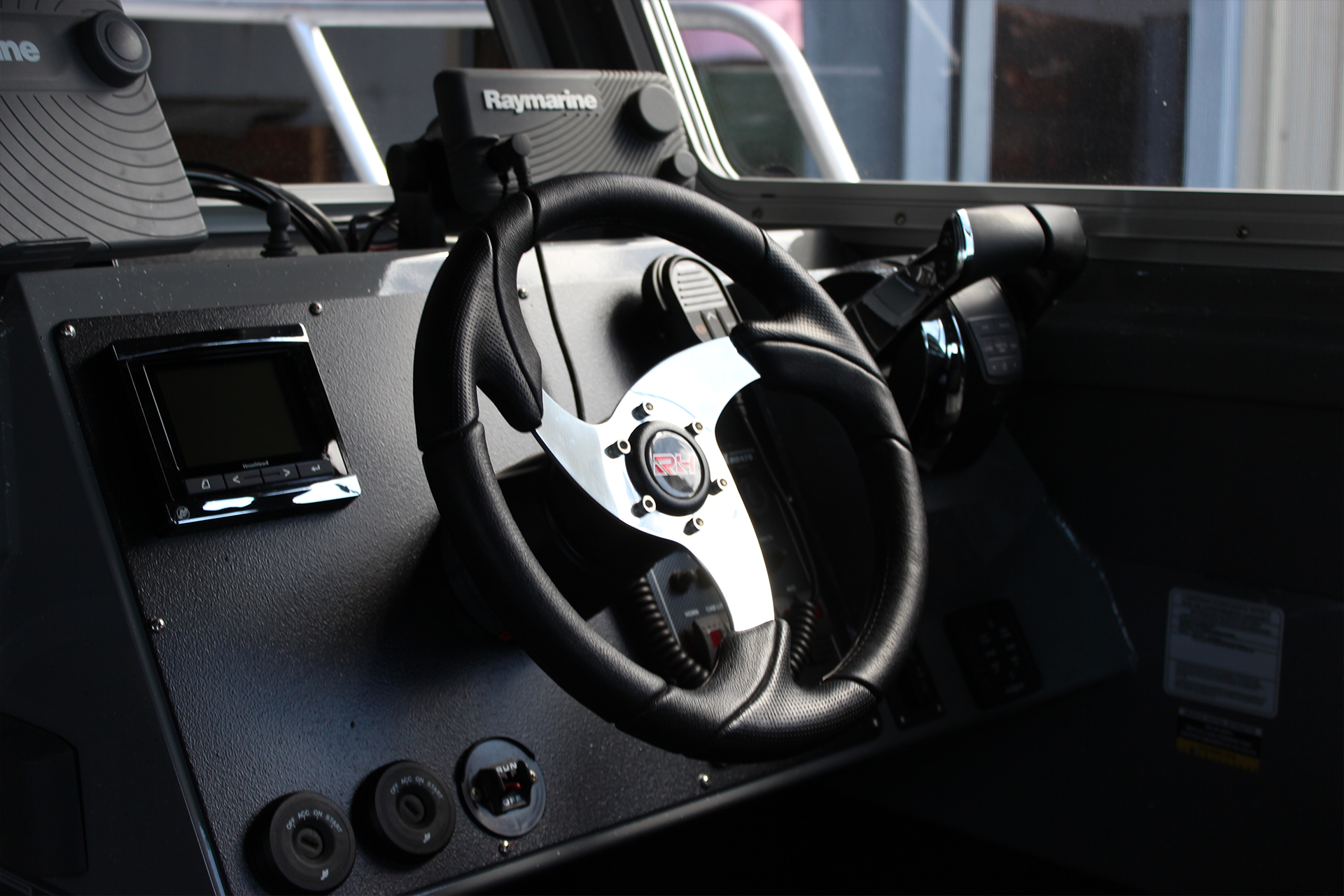

Steering Wheel: Deluxe Rubber Coating, Stainless Steel
x
x
x
Steering: Hydraulic
x
x
x
Stern Eyes: Port and Starboard
x
x
x
Storage: Two Underdash Trays
x
x
x
Storage: Upper Trays (port and starboard)
x
x
x
Storage Pockets: Seat Boxes (port and starboard)
x
x
x
Transducer Bracket: Port and Starboard
x
x
x
Transom: Extended Bracket (single or twin engines, 25" Height)
x
x
x
Trim Tabs: Electric 12" x 12" w/ Bent Edges and LED Indicators
x
x
x
Windows: Forward Flanged Windows (Framed)
x
x
x
Windows: Framed Side Windows (screened and sliding)
x
x
x
Windshield Wipers: Port and Starboard
x
x
x
Instrument Panel: 8 Rocker Style Switches w/USB at helm
x
x
x
Fuse Block (Twelve - Under Dash)
x
x
x
Fuse Block (Six - Ceiling)
x
x
x
Lights: Interior LED (Cabin and V Berth)
x
x
x
Lights: Stainless Steel Navigation (port and starboard, front windshield corners)
x
x
x
Lights: Anchor, Rear Deck Flood Light
x
x
x
Rope Locker: Bow w/ Chain Locker.
x
x
x
Paint: Gray, Full inside Urethane Paint
x
x
x
Rails: Cabin Top, Welded full length 3" grip rail
x
x
x
Seats: Two Sea Master Seats w/RH Suspension Bases w/ Slider Swivels
x
x
x
Hull Options
Radar Bracket
x
x
x
Cabin Swing Door
x
x
x
Transom Walk thru Door
x
x
x
Custom 3 Step Ladder, off transom
x
x
x
Foam Sound Deadening Pkg Cabin floor / V-Berth
x
x
x
Full Foam Per Foot
x
x
x
Shrink Wrap Per Foot
x
x
x
Aluminum Rub Rail
x
x
x
Non-Skid Forward Deck & Side Steps
x
x
x
2nd Helm Station w/Hydraulic Steering and LED Cup Holders
x
x
x
Trans Shield Boat Cover 28' POR
x
x
x
Rubber Pad Package
x
x
x
Interior / Canvas
V-Berth Cushion
x
x
x
Upgrade Cabin Ceiling and Side Panel Bolstered Cushions
x
x
x
Slant Back Canvas
x
x
x
Head Options
Enclosed Head w/Macerator
x
x
x
Porta Potty in Seat Box w/Privacy Curtain
x
x
x
Upgrade to Porta Potty Pump Out Kit
x
x
x
Heater Options/Misc
Wallas 30D Heater / 2 Outlets
x
x
x
Windshield Fans Ea
x
x
x
Galley Options

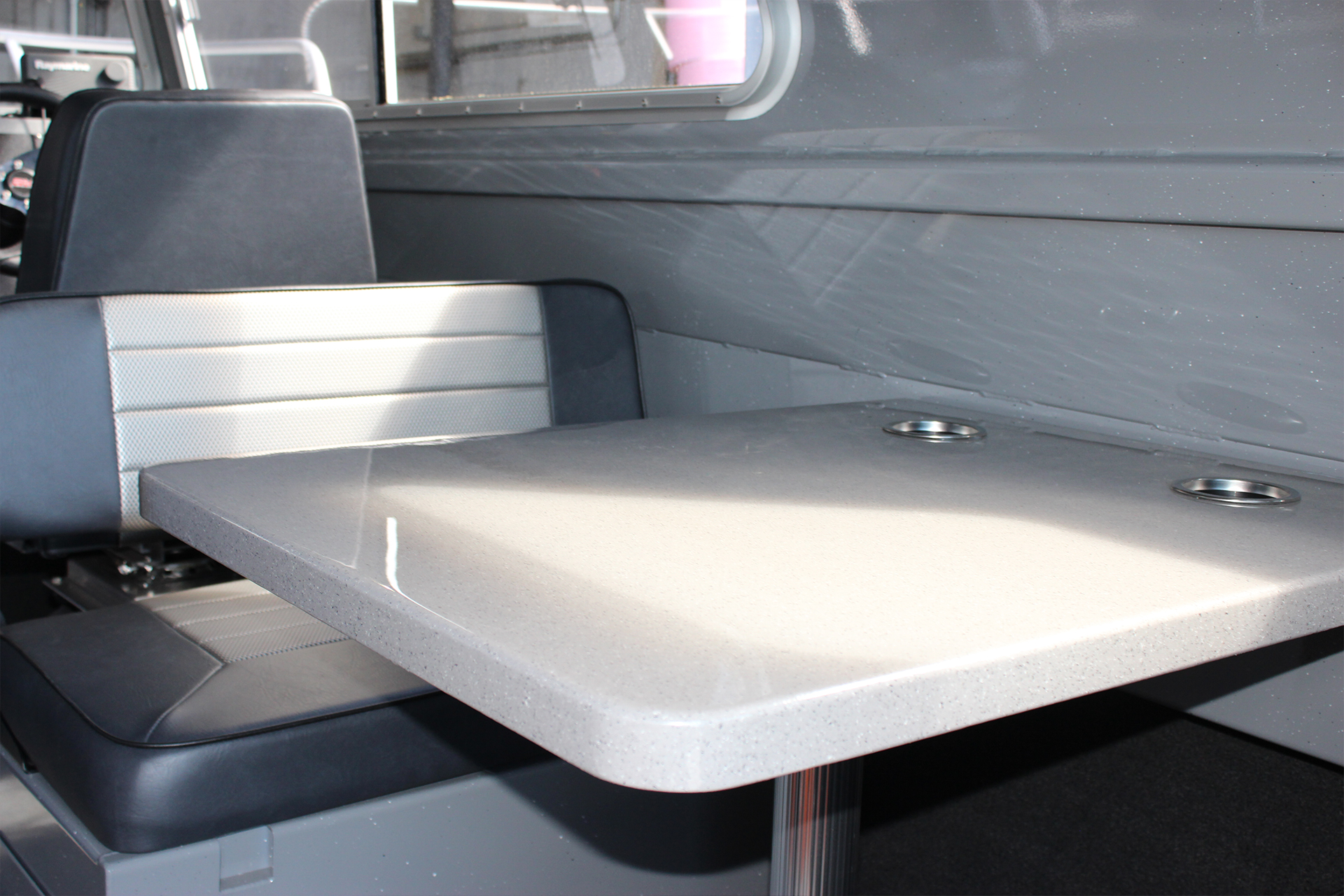

Dinette Package: includes Wood Dinette Table w/Bench Seats on Boxes, 3-drawer Wood Cabinet & Sink, and 13gal Fresh Water Tank w/ Granite Counter Top
x
x
x
Wallas Stove/Heater
x
x
x
Refrigerator
x
x
x
Trailers
Karavan Aluminum I Beam SLT-12,900-TDB-78-LONG Disc Brakes X 3 Elec -Hydraulic/Tongue jack
x
x
x
Electrical
BEP/VSR Battery Switch Single Engine
x
x
x
BEP/VSR Battery Switch Twin Engine
x
x
x
Prosport Battery Charger 3 Bank
x
x
x
Xantrex Pro 1800w Inverter
x
x
x
Power Point Receptacles
x
x
x
Shore Power Kit w/ Breaker Panel
x
x
x
110V Outlets Ea (Blue Seas)
x
x
x
Inverter / Charger 3 Bank (ProSine)
x
x
x
Lights
4" Square Commercial
x
x
x
Wireless Remote Spot Light Ea.
x
x
x
LED Courtesy Lights Ea.
x
x
x
Fishing Rod Holders / Fish Box
Aerator Fish Box transom
x
x
x
Bilge Pump; 2,000 GPH
x
x
x
Deluxe Washdown System w/Coil Hose and Spray Nozzle
x
x
x
High Water Bilge Alarm
x
x
x
Hand Wash Station w/ Cutting Board
x
x
x
Anchor Systems / Bow Thrusters
Lewmar V700 Windlass Anchor System w/Brkr - ABYC Wire
x
x
x
Lewmar Delta Fast Set Anchor 14lbs
x
x
x
Lewmar Delta Fast Set Anchor 22lbs
x
x
x
Bow Anchor Roller
x
x
x
Vetus Bow Thruster w/tube 2hp, Main Stn. Ctrl
x
x
x
2nd Station Control for Vetus Bow Thruster
x
x
x
Seats
RH Fish Pro EA
x
x
x
RH Elite Helm EA
x
x
x
RH Sea Master EA
x
x
x
Premium Suspension Seats EA
x
x
x
Suspension Seat Swivels EA
x
x
x
24" Bench Seats w/Folding Backrest on Box EA
x
x
x
36" Bench Seats w/Folding Backs / on Box EA
x
x
x
46" Bench Seats w/Folding Backs / on Box EA
x
x
x
Bench Seat Sleeper Conversion Upgrade
x
x
x
Spider Base w/Angler Seat
x
x
x
Seat Pedestal Kit EA
x
x
x
Aft Fold Down Seat EA
x
x
x

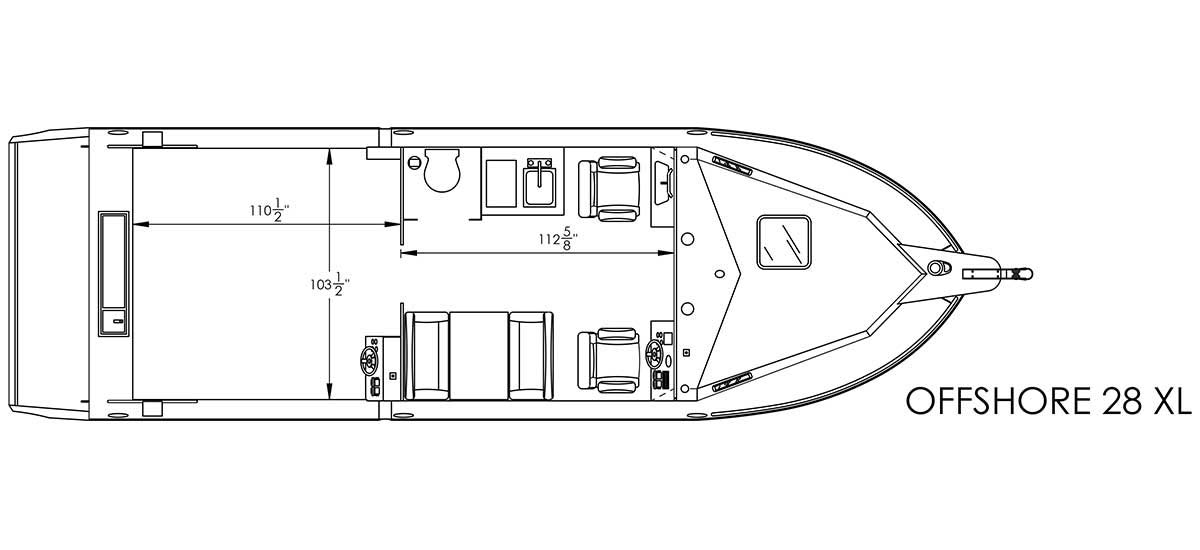

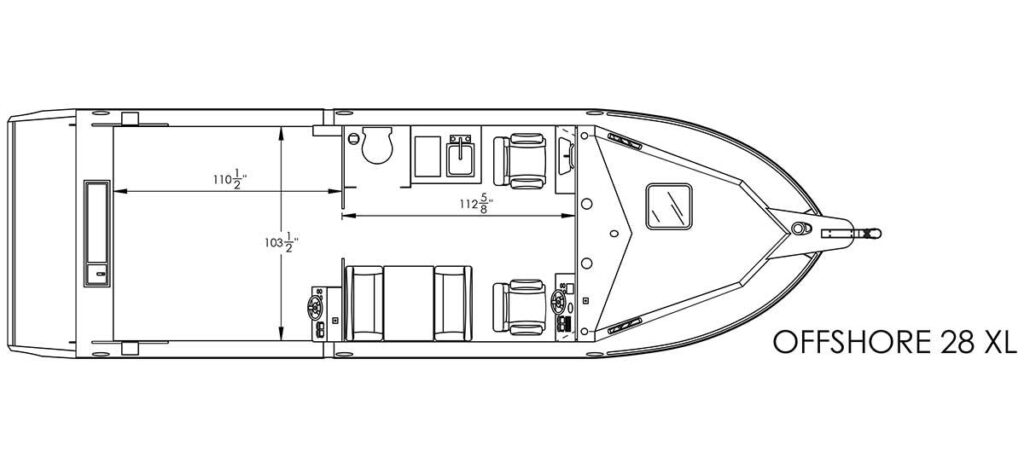

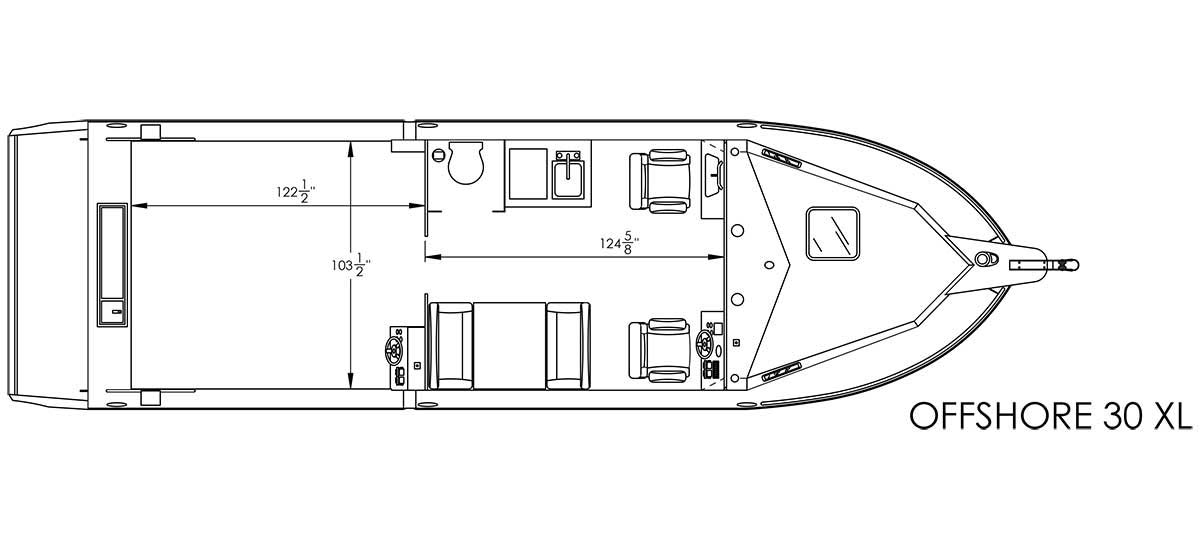

Model Diagrams
