Specifications
  • 28'
Length
28'
Bottom Width
84"
Dry Weight (lbs)
6200
Beam
102"
Side Height
42"
Transom Height
25"
Transom Degrees
18°
Total Bow Degrees
64°
Fuel Capacity (Gal)
150
Max Horsepower
600
Person/Capacity
12
Aluminum Thickness
Sides:
0.160"
Transom:
0.250"
Bottom:
0.250"
Cabin Length
132"
Cabin Width
84"
Cabin Height
78"
Aft Deck
93"
Standard Features
Marine Sacrificial Anodes
x
Battery Storage: Up to 4 Batteries, in Transom
x
Bilge Pumps: 2 (1 w/ auto switch, 1 w/ manual-switch 2000 gph)
x
84" w/ Full Reverse Bottom Chine
x
Bow Eyes: Double, Welded
x
Bow Rails: Welded Bow Rails
x
Cleats: 8", Six on Gunwales, 2 on Bow Deck
x
Heavy Duty, Non-Skid self Bailing Cockpit Deck
x
Cuddy: V Berth Carpet. Inside Bow (lined with 1/2" foam and carpet for comfort and sound)
x
Cuddy: V Berth w/ Locking Bi-fold Privacy Wood Grain Door
x
Cuddy: V Berth Screened Sliding Windows (port and starboard)
x
Cuddy: V Berth Storage
x
Cuddy: V Berth Bow-access Hatch (evacuation hatch)
x
Two Stainless Steel LED Cup Holders On Dash
x
Vinyl side striping w/ Graphics
x
Framed bulkhead door w/ locking
x
Fish Box: In transom, welded aluminum.
x
Fish Box: In floor w/ macerator pump and lifting ram.
x
150 GAL Fuel Tank
x
Lockable Glove Box
x
Door and Glove Box Grab Handles
x
Vertical Handrails (aft cabin sides)
x
Deluxe Trumpet Horn
x
Deluxe Rubber Coating, Stainless Steel Steering Wheel
x
Hydraulic Steering
x
Port and Starboard Stern Eyes
x
Storage:
  • Two Underdash Trays
  • Upper Trays (port and starboard)
x
Storage Pockets: Seat Boxes (port and starboard)
x
Port and Starboard Transducer Bracket
x
Extended Bracket Transom (single or twin engines, 25" Height)
x
Electric 12" x 9" Trim Tabs w/ Bent Edges and LED Indicators
x
Forward Flanged Windows (Framed)
x
Framed Side Windows (screened and sliding)
x
Port and Starboard Windshield Wipers
x
Instrument Panel: 8 Rocker Style Switches w/USB at helm
x
Fuse Block (12 - Under Dash)
x
Fuse Block (6 - Ceiling)
x
Interior LED Lights (Cabin and V Berth)
x
Stainless Steel Navigation Lights (port and starboard, front windshield corners)
x
Anchor, Rear Deck Flood Lights
x
Bow w/ Chain Rope Locker
x
Gray, Full inside Urethane Paint
x
Welded full length 3" Grip Cabin Top Rails
x
2 Sea Master Seats w/RH Suspension Bases, Slider Swivels
x
Hull Options
Radar Bracket
x
Cabin Swing Door
x
Transom Walk thru Door
x
Custom 3 Step Ladder, off transom
x
Foam Sound Deadening Pkg Cabin floor / V-Berth
x
Full Foam Per Foot
x
Shrink Wrap Per Foot
x
Aluminum Rub Rail
x
Non-Skid Forward Deck & Side Steps
x
2nd Helm Station w/Hydraulic Steering and LED Cup Holders
x
Trans Shield Boat Cover 28' POR
x
Rubber Pad Package
x
Interior / Canvas
V-Berth Cushion
x
Upgrade Cabin Ceiling and Side Panel Bolstered Cushions
x
Slant Back Canvas
x
Head Options
Enclosed Head w/Macerator
x
Porta Potty in Seat Box w/Privacy Curtain
x
Upgrade to Porta Potty Pump Out Kit
x
Heater Options/Misc
Wallas 30D Heater / 2 Outlets
x
Windshield Fans Ea
x
Galley Options
Dinette Package:
  • Wood Dinette Table w/Bench Seats on Boxes
  • 3-drawer Wood Cabinet & Sink
  • 13gal Fresh Water Tank
  • Granite Counter Top
x
Wallas Stove/Heater
x
Refrigerator
x
Trailers
Karavan Aluminum I Beam SLT-12,900-TDB-78-LONG Disc Brakes X 3 Elec -Hydraulic/Tongue jack
x
Electrical
BEP / VSR Battery Switch Single Engine
x
BEP / VSR Battery Switch Twin Engine
x
Prosport Battery Charger 3 Bank
x
Xantrex Pro 1800w Inverter
x
Power Point Receptacles
x
Shore Power Kit w/ Breaker Panel
x
110V Outlets Ea (Blue Seas)
x
Inverter / Charger 3 Bank (ProSine)
x
Lights
4" Square Commercial
x
Wireless Remote Spot Light Ea
x
LED Courtesy Lights Ea.
x
Fishing Rod Holders / Fish Box
Aerator Fish Box transom
x
Bilge Pump; 2,000 GPH
x
Deluxe Washdown System w/Coil Hose and Spray Nozzle
x
High Water Bilge Alarm
x
Hand Wash Station w/ Cutting Board
x
Anchor Systems / Bow Thrusters
Lewmar V700 Windlass Anchor System w/ Brkr - ABYC Wire
x
Lewmar Delta Fast Set Anchor 14lbs
x
Lewmar Delta Fast Set Anchor 22lbs
x
Bow Anchor Roller
x
Vetus Bow Thruster w/ tube 2hp, Main Stn. Ctrl
x
2nd Station Control for Vetus Bow Thruster
x
Seats
RH Fish Pro EA
x
RH Elite Helm EA
x
RH Sea Master EA
x
Premium Suspension Seats EA
x
Suspension Seat Swivels EA
x
24" Bench Seats w/ Folding Backrest on Box EA
x
36" Bench Seats w/ Folding Backs / on Box EA
x
46" Bench Seats w/ Folding Backs / on Box EA
x
Bench Seat Sleeper Conversion Upgrade
x
Spider Base w/ Angler Seat
x
Seat Pedestal Kit EA
x
Aft Fold Down Seat EA
x

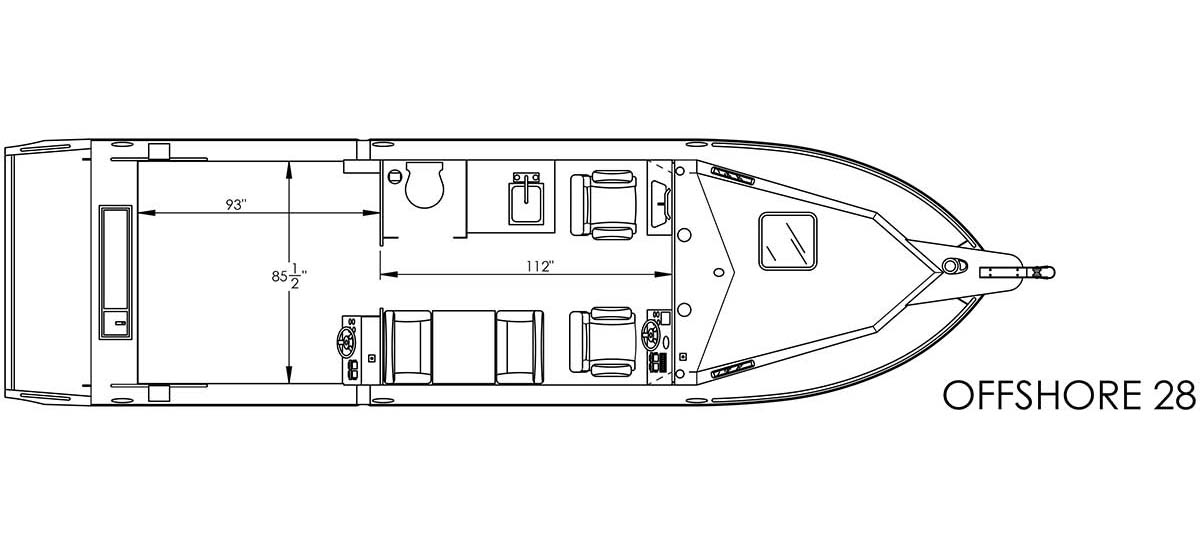

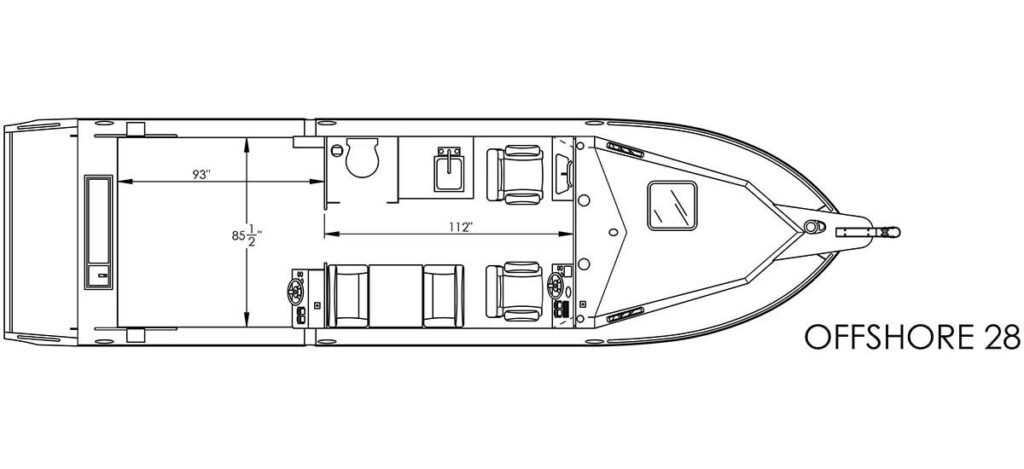

Model Diagrams
