Specifications
  • 22'
  • 24'
  • 26'
Length
22'
24'
26'
Bottom Width
84"
84"
84"
Dry Weight (lbs)
3500
4500
5500
Beam
102"
102"
102"
Side Height
37"
42"
42"
Transom Height
25"
25"
25"
Transom Degrees
16°
16°
16°
Total Bow Degrees
50°
50°
50°
Fuel Capacity (Gal)
80
100
120
Max Horsepower
350
400
450
Person/Capacity
12
12
12
Aluminum Thickness
Sides:
0.160"
0.160"
0.160"
Transom:
0.190"
0.190"
0.250"
Bottom:
0.190"
0.250"
0.250"
Standard Features
Full hard-top cabin 78" H x 96" L
  • Alaskan Bulk Head with Framed Swing Door
  • Top Trays
  • Slider Side Windows with Screens (port and star)
  • 3" Roof-Top Rails
  • 6 Rocket Launchers (rod holders)
x
x
x
Reverse Chine Bottom Design
x
x
x
Bilge pumps: 2 2000-GPH Pumps (auto/manual)
x
x
x
Bow Fish Box / Anchor Storage
x
x
x
Cleats: 8" on Gunnels / 6 on Bow
x
x
x
Full Inside Urethane Paint
x
x
x
Full Outside Paint with Graphics One Color / 6 Color Choices single stage
x
x
x
Transom Fish Box w/cutting board lid 50" L x 16" D
x
x
x
Fuel Tank:
  • 80 Gal
  • 100 Gal
  • 120 Gal

x


x



x
Lockable Glove Box
x
x
x
Handles: Welded, port and star windshield, glove box
x
x
x
Handrails: Vertical, aft cabin sides
x
x
x
Stainless LED Cup Holders on dash
x
x
x
Marine Horn
x
x
x
Self-Bailing Deck
x
x
Down-Rigger Brackets w/ hand rails aft
x
x
x
8 Switch Dash Panel and 12V Power Point
x
x
x
6 Overhead Interior LED Cabin Lights
x
x
x
Navigational & Anchor, front windshield corners' lights
x
x
x
In floor Fish Box w/ Macerator Pump
x
x
Scupper Drains
x
x
x
2 Sea Master Seats w/RH Suspension Bases, Slider Swivels
x
x
x
Non-Skid Pad Kit on Gunnel and Bow
x
x
x
36" Rear Bench Seats w/ Storage Boxes
x
x
x
Steering Wheel: 15" with rubber coating, stainless steel
x
x
x
Stern Eyes: Port and star
x
x
x
Storage Tray: Front, port and star
x
x
x
Storage: Hinged Tread Plate Step (between consoles)
x
x
x
Hydraulic Steering
x
x
x
Transducer Brackets: Port and star
x
x
x
Transom: Extended, Single or Twin Eng, 25" Height Standard
x
x
x
Windshield Wipers: Port and star
x
x
x
Marine Grade Plywood Floors / Marine Grade Vinyl Floor Covering
x
x
x
Aluminum Anodes
x
x
x
Kicker Motor Bracket Port Side
x
x
x
Transom Access Panels
x
x
x
Hull Options
Radar Bracket
x
x
x
Upgrade to .250 bottom
x
x
x
Cabin Swing Door Upgrade
x
x
x
Trim Tabs: Electric 12" x 9" and LED indicators
x
x
x
Transom Walk thru Door
x
x
x
Custom 3-Step Ladder, off transom
x
x
x
Foam Sound Deadening Package Cabin Floor
x
x
x
Full Foam Per Foot
x
x
x
Trans Shield Boat Cover
x
x
x
Aluminum Rub Rail
x
x
x
2nd Helm Station w/Hydraulic Steering (Alaskan Bulk Head Only)
x
x
x
LED Cup Holder
Diamond Plate Bow Anchor Shield
x
x
x
Rubber Bow Pad Kit
x
x
x
Head Options
Enclosed Head w/ Macerator
x
x
x
Porta Potty in Seat Box w/ Privacy Curtain
x
x
x
Upgrade to Porta Potty Pump Out Kit
x
x
x
Heater Options/Misc
Wallas 30D Heater / 2 Outlets
x
x
x
Windshield Fans Ea
x
x
x
Galley Options - 10' Cabin
Dinette Package:
  • Wood Dinette Table w/Bench Seats on Boxes
  • 3-drawer Wood Cabinet & Sink
  • Granite Counter Top w/ 9 gal Fresh Water Tank
x
Wallas Stove / Heater
x
Wallas Single Burner Cook Top
x
Wood Dinette Table, removable w/ Base
x
Refrigerator
x
Trailers
RH SLT 5800 TDB10-78-L / DISC Brakes x 2 w/ Tongue Jack (Aluminum I Beam / Steel Bunks / Alum Fenders)
x
Karavan Aluminum I Beam SLT-8600-TDB-78-LFB (Disc BrakesX2 Elec -Hyd/Tongue jack/Alum I Beam)
x
x
Electrical
BEP / VSR Battery Switch Single Engine
x
x
x
BEP / VSR Battery Switch Twin Engine
x
x
x
Shore Power Kit w/ Breaker Panel
x
x
x
110V Outlets Ea (Blue Seas)
x
x
x
Power Point Receptacles
x
x
x
Inverter / Charger 3 Bank
x
x
x
Lights
4" Square Commercial LED Work Light Ea
x
x
x
Wireless Remote Spot Light Ea
x
x
x
LED Courtesy Lights Ea
x
x
x
Fishing Rod Holders / Fish Box
Bow Fish Box
x
x
x
Aerator Fish Box transom
x
x
x
High Water Bilge Alarm
x
x
x
Bilge Pump; 2,000 GPH
x
x
x
Deluxe Washdown System w/ Coil Hose and Spray Nozzle
x
x
x
Hand Wash Station
x
x
x
Transom Fishbox w/ Cutting Board
Interior / Canvas
Upgrade Cabin Ceiling and Side Panel Bolster Cushions
x
x
x
Slant Back Canvas
x
x
x
Seats
Fish Pro
x
x
x
Elite Helm
x
x
x
Sea Master
x
x
x
Premium Suspension Seats
x
x
x
Suspension Seat Swivels
x
x
x
River Master Seats w/ Arms
x
x
x
24" Bench Seats w/ Folding Backrest
x
x
x
36" Bench Seats w/ Folding Backs / on Box
x
x
x
46" Bench Seats w/ Folding Backs / on Box (10' cabin only)
x
Aft Fold Down Seat
x
x
x
Spring Suspension
x
x
x
Seat Pedestal Kit
x
x
x
Aluminum Seat Box
x
x
x
Bench Seat Sleeper Conversion Upgrade
x
x
x
Spider Base w/ Angler Seat
Anchor Systems
Increase Bow for Anchor Locker for rope / chain / Windlass Anchor System
x
x
x
Lewmar V700 Windlass Anchor System w/ Brkr - ABYC Wire
x
x
x
Lewmar Delta Fast Set Anchor 14lbs
x
x
x
Lewmar Delta Fast Set Anchor 22lbs
x
x
x
Bow Anchor Roller
x
x
x

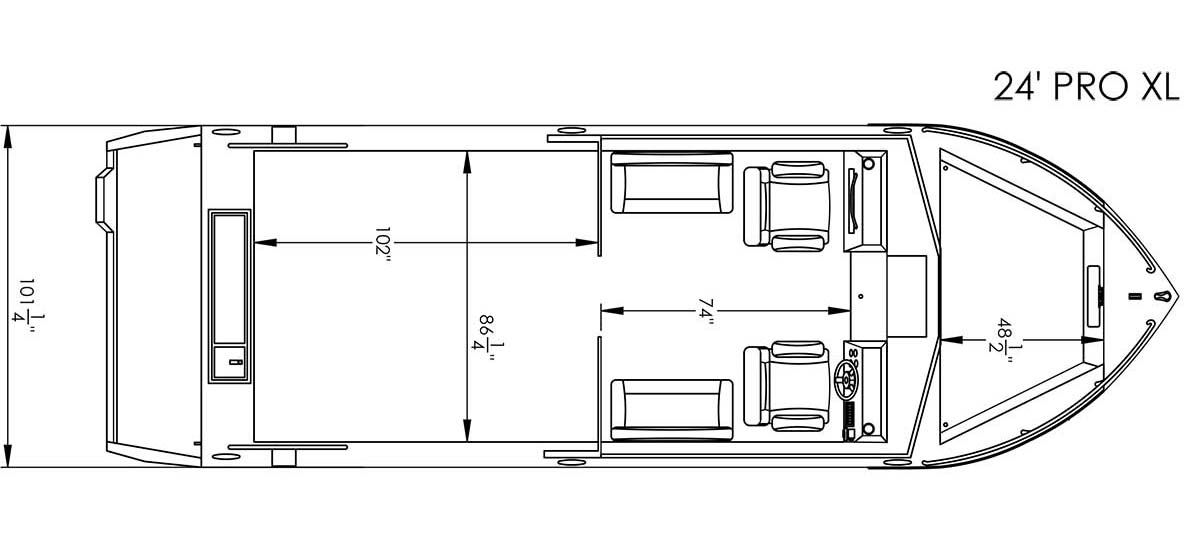

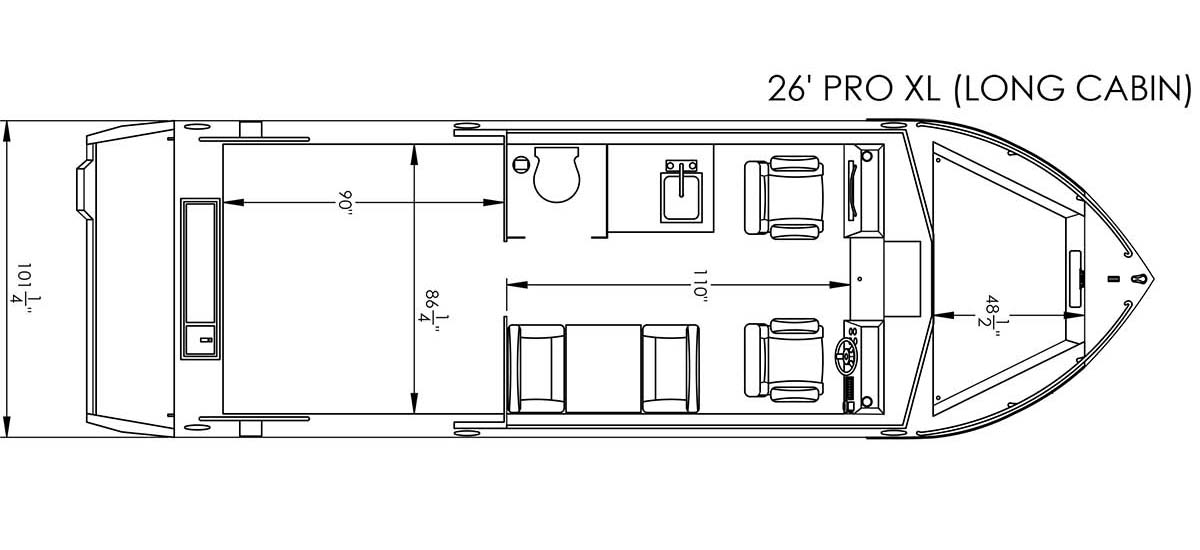

Model Diagrams
