Specifications
  • 19'
  • 20'
  • 21'
  • 22'
Length
19'
20'
21'
22'
Bottom Width
72"
72"
72"
72"
Dry Weight (lbs)
1349
1420
1490
1560
Beam
93"
93"
93"
93"
Side Height
34"
34"
34"
34"
Transom Height
25"
25"
25"
25"
Transom Degrees
16°
16°
16°
16°
Fuel Capacity (Gal)
60
60
60
60
Max Horsepower
200 - 250
200 - 250
200 - 250
200 - 250
Person/Capacity
8
8
8
9
Aluminum Thickness
Sides:
0.125"
0.125"
0.125"
0.125"
Transom:
0.190"
0.190"
0.190"
0.190"
Bottom:
0.190"
0.190"
0.190"
0.190"
Standard Features
Full Reverse Chine
x
x
x
x
Stern Eyes
x
x
x
x
Bow Eyes
x
x
x
x
2 Transducer Brackets
x
x
x
x
5 Aluminum Cleats
x
x
x
x
Full Inside Paint
x
x
x
x
Full Outside Solid Color Paint
x
x
x
x
Rod Storage w/ 3 Rod Grippers (Each Side)
x
x
x
x
2 Cup Holders
x
x
x
x
Vinyl Floors
x
x
x
x
Marine Sacrificial Anode
x
x
x
x
Vinyl Graphic Decal
x
x
x
x
2 Elite Helm Folding Seats with Boxes
x
x
x
x
Bow Storage Box
x
x
x
x
Rope Storage
x
x
x
x
60 Gal Fuel Tank
x
x
x
x
Bow Step Pad
x
x
x
x
Stress Flex Hull Design
x
x
x
x
Center Step Storage Box
x
x
x
x
Lockable Glove Box
x
x
x
x
Canvas Top 2-Bow w/ Quick Release System
x
x
x
x
1200 GPM Bilge Pump w/ Float Switch
x
x
x
x
Windshield Wiper (Star)
x
x
x
x
Tackle Box
x
x
x
x
Extended Offshore Bracket
x
x
x
x
Diamond Plate Top on Offshore Bracket
x
x
x
x
Rotary Steering System
x
x
x
x
Aluminum Hand Rails
x
x
x
x
Electrical Package
Navigational Lights
x
x
x
x
Anchor Light
x
x
x
x
Electric Horn
x
x
x
x
12V Power Point
x
x
x
x
Fuel Gauge
x
x
x
x
X Package
2 Bench Seats (24")
x
x
x
x
Sea Master Seats
x
x
x
x
Paint Upgrade
x
x
x
x
Polished Aluminum Steering Wheel
x
x
x
x
Under Dash Canvas Covers
x
x
x
x
Boarding Steps
x
x
x
x
Hand Wash Station
x
x
x
x
Windshield Wiper (Port)
x
x
x
x
Polished Aluminum Steering Wheel
x
x
x
x
Polished Navigational Lights
x
x
x
x
Gunnel Non-Skid Step Pad
x
x
x
x
Polished Fuel Cap
x
x
x
x
Options & Upgrades
Aerator for Fish Box
x
x
x
x
Bow Fish Box
x
x
x
x
Transom Fish Box
x
x
x
x
Wash-Down Pump and Hose
x
x
x
x
Hand Wash Station w/ Cutting Board Lid
x
x
x
x
Water / Fuel Separator
x
x
x
x
Pop Up Cleats
x
x
x
x
Diamond Plate Bow Guard
x
x
x
x
Dual Battery Switch
x
x
x
x
BEP/VSR Battery Switch Single Engine
x
x
x
x
Trolling Motor 24 V Recpt - Harness w/ Dual Battery Tray & Charger
x
x
x
x
Hydraulic Steering
x
x
x
x
Windshield Wiper (Port)
x
x
x
x
Trans Shield Boat Cover
x
x
x
x
Seat Upgrades
Fish Pro
x
x
x
x
Elite Helm
x
x
x
x
Sea Master
x
x
x
x
Large Sea Master
x
x
x
x
Premium Suspension Seats
x
x
x
x
24" Bench Seats w/ Folding Backrest
x
x
x
x
36" Bench Seats w/ Folding Backrest
x
x
x
x
18" Aluminum Seat Box
x
x
x
x
Aerated Fish Box Bench Seat w/ Backrest
x
x
x
x
Standard Suspension Base with Swivel
x
x
x
x
Seat Pedestal Kit
x
x
x
x
Trailers
RH 3100-78 GALV w/Tongue Jack
Plastic Bunks/Swing Tongue
x
x
RH 4800-78G GALV Disc Brakes X 2 w/ Tongue Jack
w/ Tongue Jack/Plastic Bunks
x
x
Canvas | Top Options
Side Curtains & Boot
x
x
x
x
Drop Curtain
x
x
x
x
Sloper Top
x
x
x
x
Aluminum Lodge Top Upgrade
x
x
x
x
Full Lodge Top
x
x
x
x
Moorage Cover
x
x
x
x
Canvas Top w/ Stainless Bows
x
x
x
x
3/4 Top w/ Slider Windows
x
x
x
x
Alaskan Bulk Head
x
x
x
x

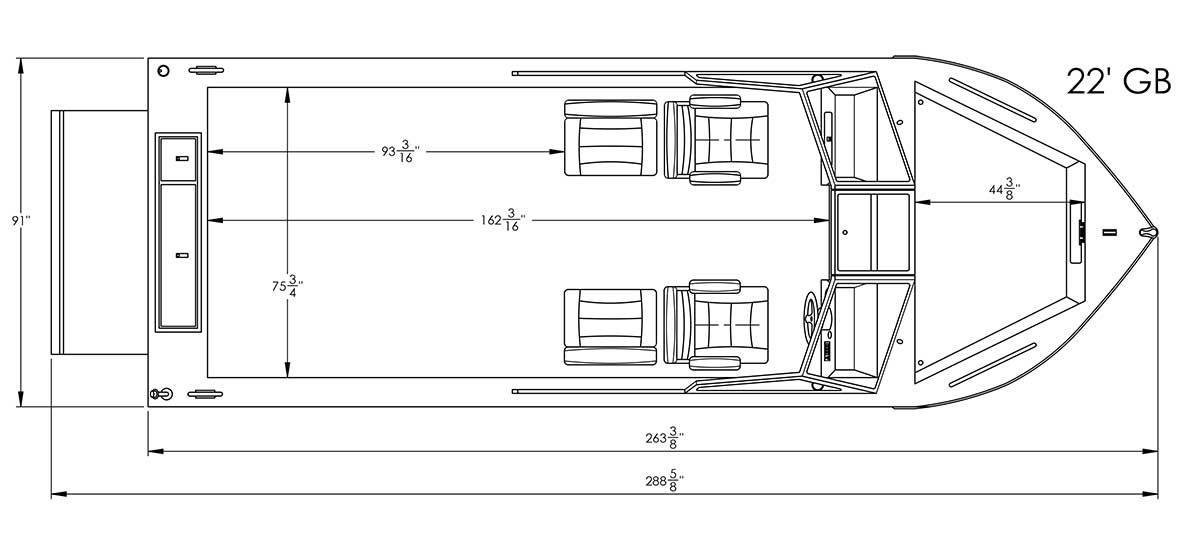

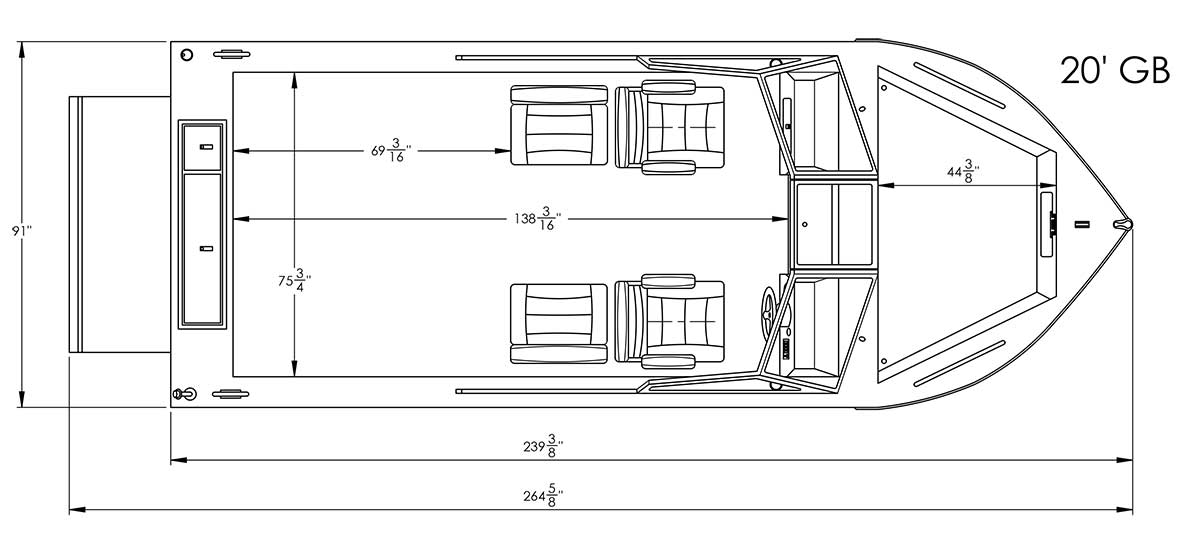

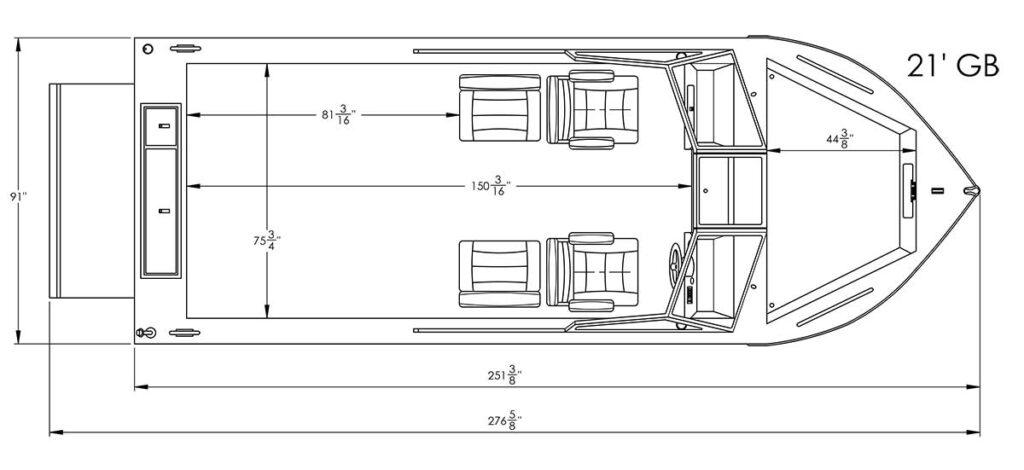

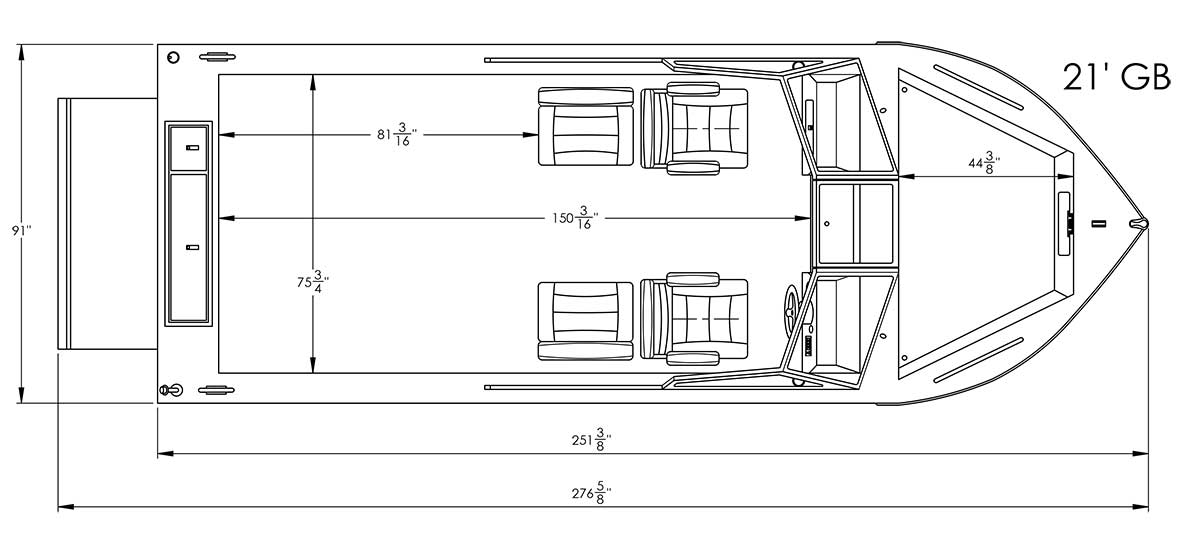

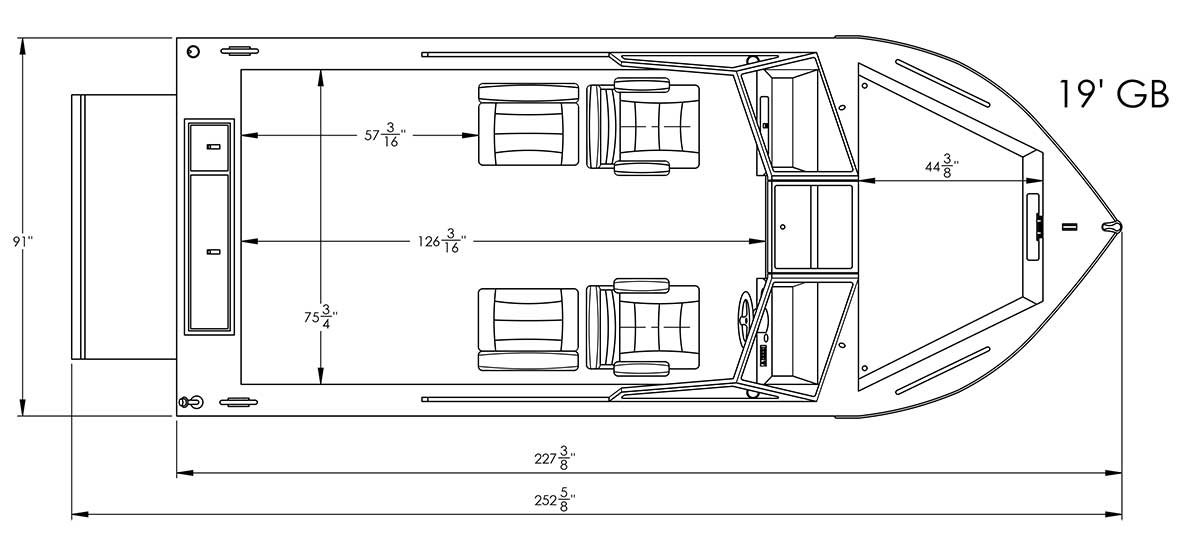

Model Diagrams
