Pro Cuddy - RH Aluminum Boats

Pro Cuddy

Specifications

Length

24'

26'

bottom length

84"

Dry Weight (lbs)

4500

5500

beam

102"

side height

42"

transom height

25"

transom degrees

16°

Total Bow Degrees

50°

Fuel Capacity (Gal)

100

120

Max Horsepower

400

450

Person/Capacity

Aluminum Thickness

sides:

0.160"

Transom:

0.190"

0.250"

Bottom:

0.250"

standard features

Full hard-top cabin 78" H x 96" L

Alaskan Bulk Head with Framed Swing Door

Top Trays

Slider Side Windows with Screens (port and star)

3" Roof-Top Rails

6 Rocket Launchers (rod holders)

2 Net Holders on port and star cabin

Reverse Chine Bottom Design Bilge pumps: (2) 2000-GPH Pumps (auto/manual)

Bow Eyes: Double, welded

Cleats: 8" on Gunnels / (6) on Bow

Paint: Full Inside Urethane Paint

Full Outside Paint with Graphics One Color / 6 Color Choices single stage

Transom Fish Box w/cutting board lid

Fuel Tank: 80 gal (22') / 100 gal (24') / 120 gal (26')

Lockable Glove Box

Handles: Welded, port and star windshield, glove box

Handrails: Vertical, aft cabin sides

(2) Stainless LED Cup Holders on dash

Horn: Deluxe Trumpet Horn

Self-Bailing Deck

Down-Rigger Brackets w/hand rails aft

8 Switch Dash Panel and 12V Power Point w/ LED Light Package (Cabin and V Berth)

Lights: Navigational & Anchor, front winshield corners

In floor Fish Box w/Macerator Pump

Scupper Drains

(2) Sea Master Seats w/RH Suspension Bases, Slider Swivels

Non-Skid Pad Kit on Gunnel and Bow

Steering Wheel: 15" with rubber coating, stainless steel

Stern Eyes: Port and star

Upper Trays: Port and star

Hydraulic Steering

Transducer Brackets: Port and star

Transom: Extended, Single or Twin Eng, 25" Height Standard

Windshield Wipers: Port and star

Marine Grade Plywood Floors / Marine Grade Vinyl Floor Covering

Aluminum Anodes

Kicker Motor Bracket Port Side

Transom Access Panels

Windows: Forward Framed Windows

Windows: Framed side Windows, Screened and Sliding

Bow Access: 20x20 Evacuatin Hatch

Smart Cuddy w/ V Berth Cushion. Fold Down Door. Inside Bow lined w/ 1/2" Foam & Carpet for Comfort and Sound.

Hull options

Credit: Omit V Berth Smart Cuddy Pkg.

Radar Bracket

Cabin Swing Door Upgrade

Trim Tabs: Electric 12" x 9" and LED indicators

Transom Walk thru Door

Custom 3-Step Ladder, off transom

Foam Sound Deadening Package Cabin Floor

Full Foam Per Foot

Trans Shield Boat Cover

Aluminum Rub Rail

2nd Helm Station w/Hydraulic Steering (Alaskan Bulk Head Only) LED cup Holder

Diamond Plate Bow Anchor Shield

Rubber Bow Pad Kit

head options

Enclosed Head w/Macerator

Porta Potty in Seat Box w/Privacy Curtain

Upgrade to Porta Potty Pump Out Kit

heater options/misc

Wallas 30D Heater / 2 Outlets

Windshield Fans Ea

galley options - 10' cabin

Dinette Package: includes Wood Dinette Table w/Bench Seats on Boxes, 3-drawer Wood Cabinet & Sink, Granite Counter Top w/ 9 gal Fresh Water Tank.

Wallas Stove/Heater

Wallas Single Burner Cook Top

Wood Dinette Table, removable w/Base

Refrigerator

trailers

RH SLT 5800 TDB10-78-L / DISC Brakes x 2 w/ Tongue Jack "Aluminum I Beam/Steel Bunks/Alum Fenders"

Karavan Aluminum I Beam SLT-8600-TDB-78-LFB Disc BrakesX2 Elec -Hyd/Tongue jack/Alum I Beam

electrical

BEP/VSR Battery Switch Single Engine

BEP/VSR Battery Switch Twin Engine

Shore Power Kit w/ Breaker Panel

110V Outlets Ea (Blue Seas)

Power Point Receptacles

Inverter / Charger 3 Bank

lights

4" Square Commercial LED Work Light Ea

Wireless Remote Spot Light Ea

LED Courtesy Lights Ea

fishing rod holders / fish box

Aerator Fish Box transom

High Water Bilge Alarm

Bilge Pump; 2,000 GPH

Deluxe Washdown System w/Coil Hose and Spray Nozzle

Hand Wash Station

interior canavs

Upgrade Cabin Ceiling and Side Panel Bolster Cushions

Slant Back Canvas

seats

Fish Pro

Elite Helm

Sea Master

Premium Suspension Seats

Suspension Seat Swivels

River Master Seats w/Arms

24" Bench Seats w/Folding Backrest

36" Bench Seats w/Folding Backs / on Box

46" Bench Seats w/Folding Backs / on Box (10' cabin only)

Aft Fold Down Seat

Seat Pedestal Kit

Aluminum Seat Box

Bench Seat Sleeper Conversion Upgrade

Spider Base w/Angler Seat

anchor systems

Lewmar V700 Windlass Anchor System w/Brkr - ABYC Wire

Lewmar Delta Fast Set Anchor 14lbs

Lewmar Delta Fast Set Anchor 22lbs

Bow Anchor Roller

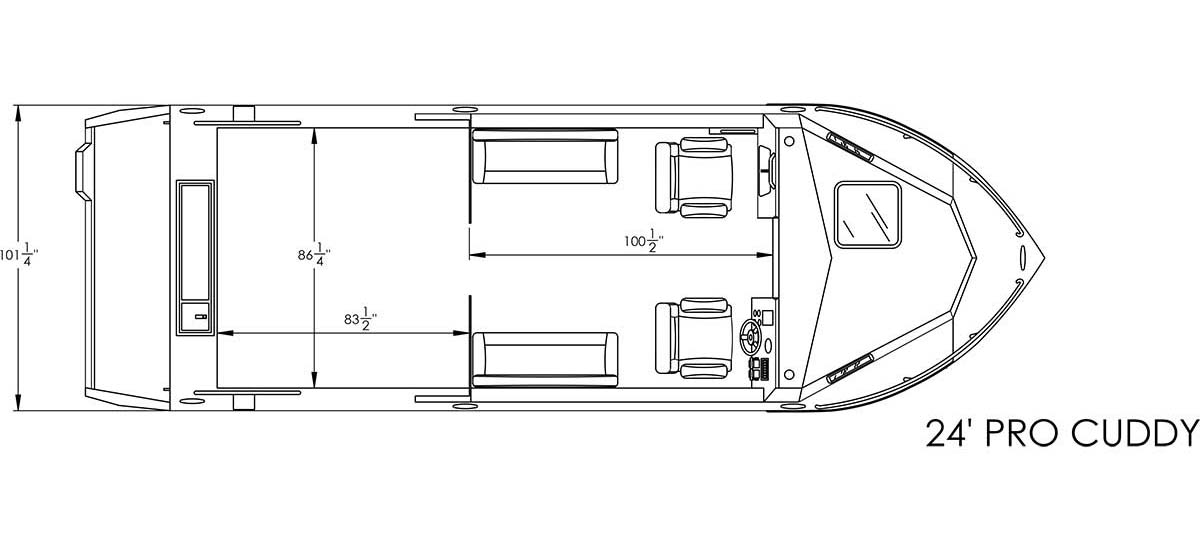

model diagrams
